Advantages:

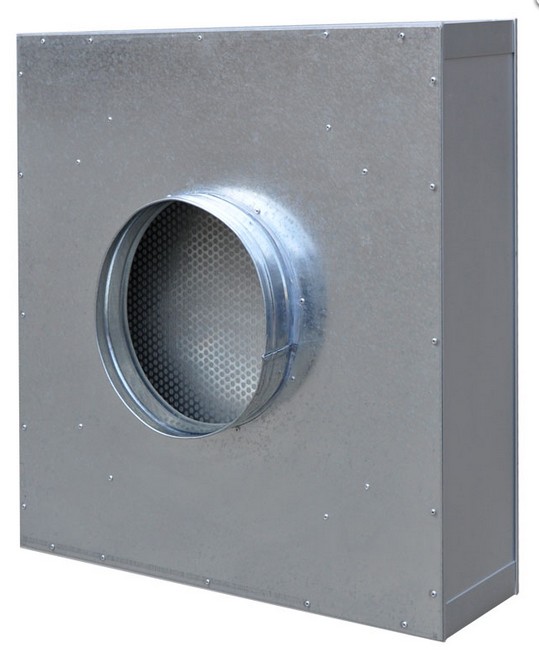

★It is designed integration which prevent the air leakage.It is fast to install and easy to maintain.

★Either a 10" or 12" collar connection .The collar includes an integral continuous raised ridge to assist in securing flexible ducting.

★An adjustable diffusion disc that promotes uniform airflow over the entire filters and allows filter-to-filter air balancing.Roomside adjustment is accomplished through a port in the center divider(optional).

★Bottom side should be well protected by aluminum grille.

★The laser equipment scan the filter one by one (MPPS).

★Widely used in Hospital Operation Room;Lab;Pharmaceutical lab;micro-electronic;film;optical and Food processing etc.

Key Datas:

Application:HEPA Filtration

Type: Mini-pleated  Filter

Casing : Anodised and extruded Aluminium

       Top plate and Collar are galvanized steel.

Media: Micro glass fibre paper

Seperator: Holt-melt glue

Sealant:Polyurethane(2-K-sealant)

Efficiency according to EN 1822: U10-U17

Recommended final pressure drop: 500-600Pa

Temperature:80℃

Humidity:100%RH
