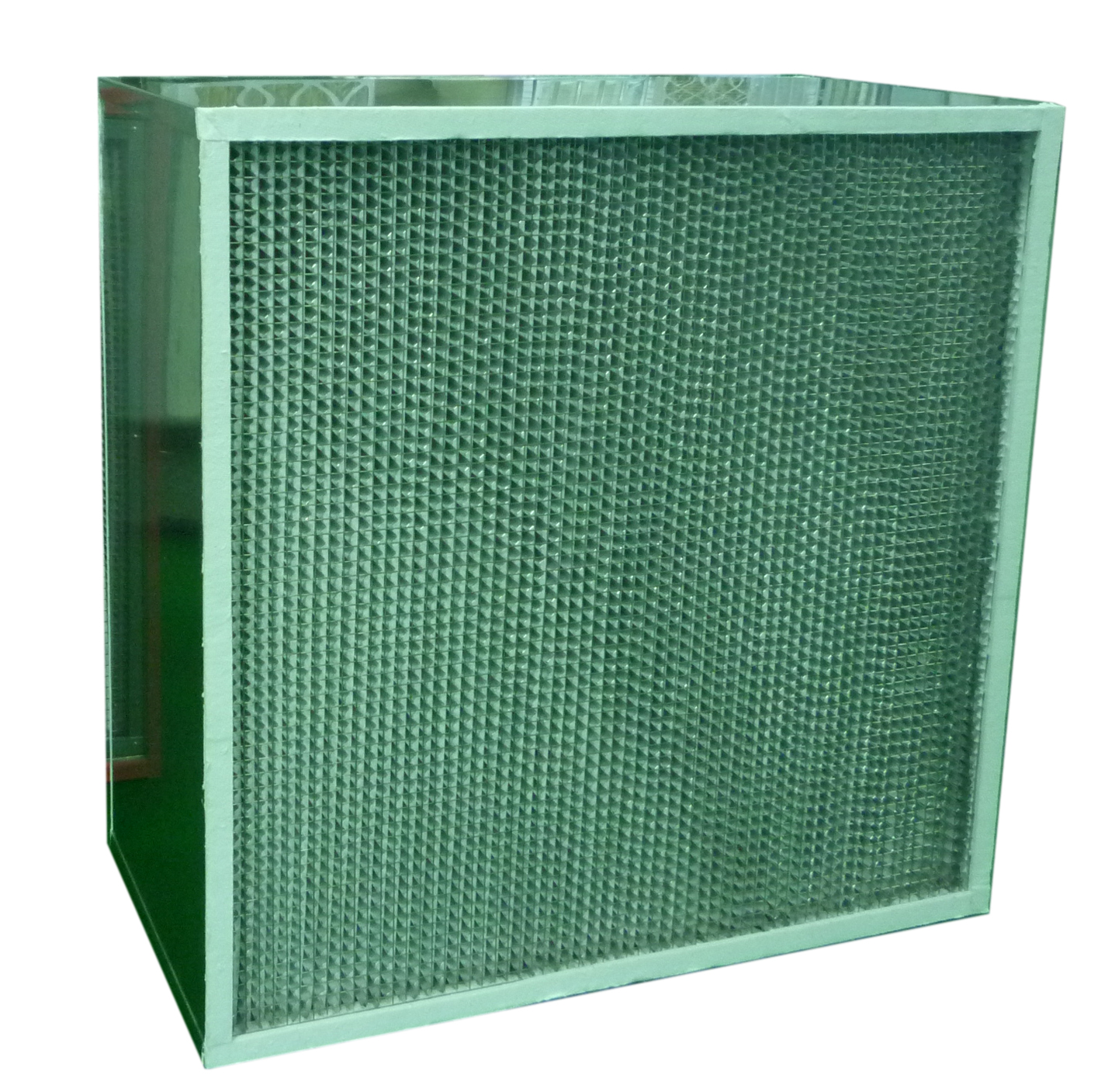

Advantages:

●Specially selected components to meet high temperature requirements.

●Ideal for paint drying ovens.

●99.97% DOP.

●Heat resistant corrugated aluminium seperators keep the pleats of the filter media apart.

 The uniform spacing between the pleats allows optimal air flow into and through the filter.

●The media pack is thoroughly sealed to an expansion layer with a special, heat resistant

 sealant.The bond totally encapsulates the media edges and seperators, preventing bypass

 leakages.

Key datas:

Application: Protection of ultra-clean processes at high temperatures.

Frame: Stainless steel.

Gasket: Glass fibre

Media: Glass fibre paper.

Seperator: Aluminium foil.

Face guard: Both sides stainless steel wire mesh.

Sealant: Silicon free Ceramic

DOP efficiency: 99.97%

Efficiency according to EN 1822: H13/H14

Temperature: 350℃ in continuous service.

Temperature: 400℃ in second.
